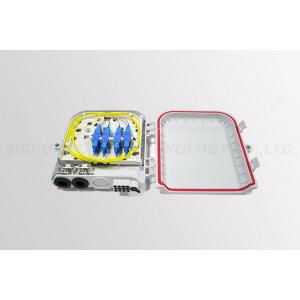

Outdoor Fiber Distribution Box 8 Port ABS PC Material 1*8 PLC Splitter
♦ Description
Industry Standard User Interface, be made of high impact plastic.
Can accommodate 1x4 & 1X8 & 1X16PLC splitter.
widely used in FTTH access network.
Widely used in FTTX access networks.
Telecommunication Networks
CATV networks
Local Area Networks
The Fiber Termination Box is designed specifically for FTTX network building.
Can be done fiber splicing ,splitting, distribution in this distribution box,
It is well suited for indoor or outdoor use.
♦ Application
- Great for wall mounting or pole mounting
- Widely used in FTTH network system
- PC+ABS material,wet-proof,water-proof,anti-aging
- Protection level up to IP65It is applicable to installation and use of SC adapter or LC adapter,fast connector.
♦ Specification
| Environmental requirement | Working temperature:-40~+80ºC | Relative humidity:≤85%(+30ºC) | Atmospheric pressure:70Kpa~106Kpa | |
| Main technical datasheet | Insertion loss:≤0.2dB | UPC return loss:≥50dB | APC return loss:≥60dB | Life of insertion and extraction:>1000 |
| Thunder-proof technical datasheet | The grounding device is isolated with the cabinet, isolation resistance is less than 2x104 MΩ/500V(DC); IR≥2x104MΩ/500V | |||
| The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flashover;U≥3000V | ||||
| Dimensions(L*W*H)mm | 275×200×80 | |||
| Installation | Wall mounting(indoor/outdoor) Pole Mounting | |||
| Level of protection | IP65 | |||
| Cable Entries | Waterproof connector | |||
| Weight | 0.85kg | |||
| No. of Adaptor & Splitter | 1*8 PLC splitter/SC 8 CORES/Duplex LC8 cores | |||
| Max. Capacity of Fiber | 8 fibers | |||
| Max. Capacity of Splice | 8 cores | |||
♦ Packing
- Carton
